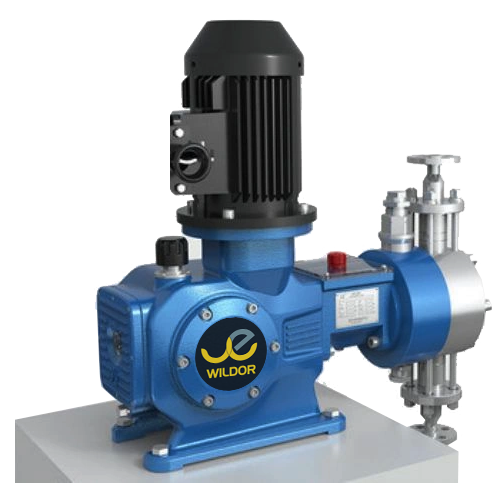

Hydraulically Actuated Diaphragm Type Metering Pump

Overview:

Hydraulic Diaphragm Pumps are positive displacement pumps that use reciprocating diaphragms to move the fluid. They are found to be very reliable because they have no internal parts to rub against each other, creating friction and causing wear. In addition, because they do not require seals or lubrication in the pump head, there is no possibility of oil vapor contamination or leakage of the pumped medium.

Good reason for buy:

  • Design Standard: As per API 675
  • Zero leakage pump
  • Suitable for dangerous toxic environmentally harmful or sensitive fluids
  • Integrated pressure relief valve
  • Hermetically sealed

Technical Data

For Metallic head

Sr. No.

Model

Capacity (LPH)

Max Pressure (Bar g)



Temperature Range Up to 250 Deg C

1

BHH-01

0-178

45

2

BHH-02

0-767

37

3

BHH-03

0-3450

27

4

BHH-04

0-6780

13
  1. For Plastic head Maximum pressure will be 10 Bar g.
  2. We can customize operational capability like
    • Multiple head
    • Metallic diaphragm
    • Flow can be adjusted through electric/ pneumatic actuator, servo motors.

Material of construction of wetted part:

PP, PTFE, PVC, PVDF, SS 304, SS 316, SS 316L, Haste alloy, Alloy-20

Application & Industries

  • Additive injection

  • Amine treatment

  • Extraction with supercritical fluids

  • Production of biofuels

  • Dilution of surfactants

  • Production of biofuels

  • Coal refinement

  • Odorization of Gas

  • Dilution of emulsifiers
