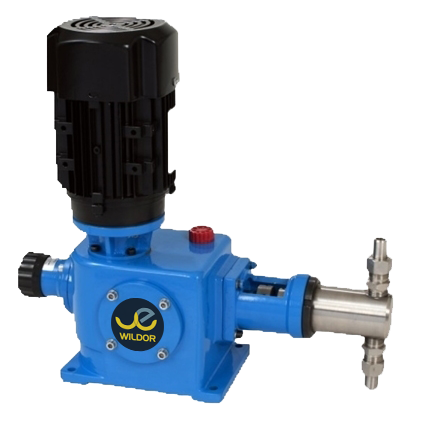

Plunger Metering Pump

Plunger metering pumps have a Plunger packed by gland packing, two valves, a displacement chamber and a drive mechanism. The Plunger reciprocates in gland packing to create suction to move fluid into and out of the pump chamber. It is located between the side of the discharge chamber and the connection flange. The two valves are usually baffle valves or spring-loaded ball valves made of the selected material by chemical compatibility chart. They operate by allowing fluid to move in and out of the chamber.

Good reason for buy:

  • Design standard: As per API 675
  • Low maintenance cost & long service life
  • Safety and reliability in extreme operating condition
  • Suitable for high pressure injection
  • Economical solution for simple tasks

Technical Data

Sr. No.

Model

Capacity (LPH)

Max Pressure (Bar g)



Temperature Range Up to 250 Deg C

1

BHP-01

0-178

90

2

BHP-02

0-767

120

3

BHP-03

0-3450

240

4

BHP-04

0-6780

200
  1. We can customize operational capability like
    • Multiple head
    • Wide range of gland packings & seals
    • Jacketing for liquid head
    • Flow can be adjusted through electric/ pneumatic actuator, servo motors.

Material of construction of wetted part:

SS 304, SS 316, SS 316L, Haste alloy, Alloy-20

Application & Industries

  • Distillation plants

  • Wet oxidation of waste water

  • Esterification

  • Addition of waxes, flame retardants and lubricant

  • Manufacturing of detergent and cleaners

  • Homogenization and dispersion

  • Hydrocracking process

  • High pressure cleaning system
